100G Ethernet
2 x 100G QSFP28 connections.
Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch.
Please click here to view supported QSFP28 modules.
Blackmagic Media Dock Ultra
SKU: DWCLDC/DOCNMDU03
EAN: 9 338716 010558
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010558
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
3217,80 €
Description
Blackmagic Media Dock Ultra accelerates your post production workflow by enabling incredibly high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 2 x 100G Ethernet ports allow multiple edit stations to connect and edit directly. Blackmagic Media Dock Ultra also has dual AC power inputs for redundancy and 2 x SDI and an HDMI output for live monitoring of media in real time on a TV or monitor.

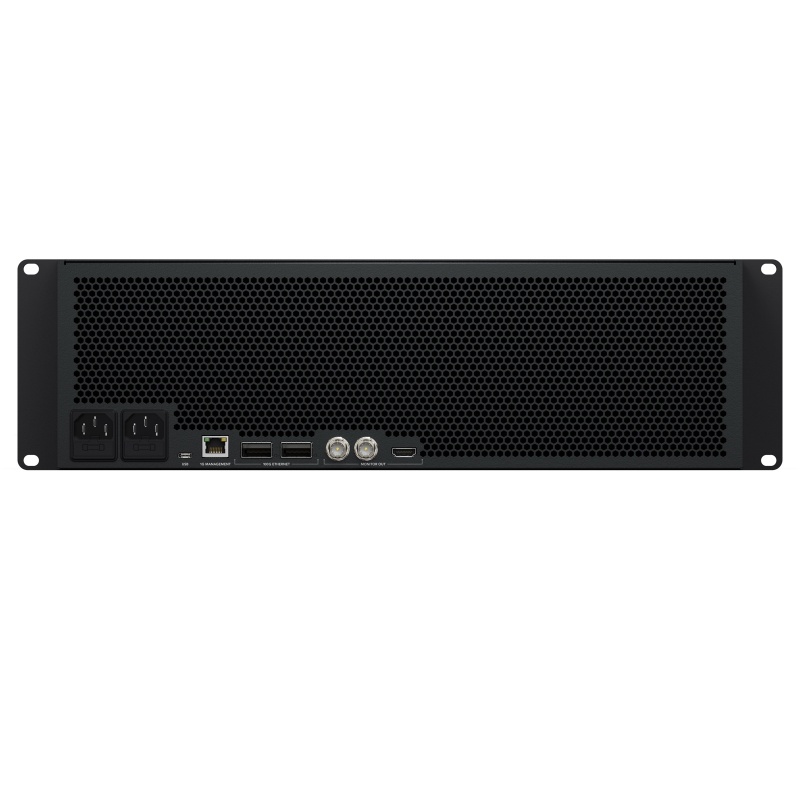

Connections
1G Management
1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates.
SDI Monitor Outputs
2
HDMI Monitor Outputs
1
SDI Rates
1.5G, 3G.
Computer Interface
1 x USB-C for Cloud Store Setup utility and software updates.
Power
2 x IEC C14 power inputs.
File Sharing Protocol
Protocol
NFS (HFS+ formatted disks only)
SMB
Computer Connections
50 max.
Storage
Storage Type
Up to 3 Blackmagic Media Modules.
External Storage Format
Blackmagic (formatted in camera)
Displays
Status Indicator
LED bezel indicator lights around media module bays.
Monitor Out Displays
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
SDI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
Device Control
External Control
USB-C or Ethernet for configuration and software updates.
Software
Software Included
Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port
Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs
2 x IEC C14 sockets.
Power Usage
TBC
Physical Installation
3 rack units.
Environmental Specifications
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic Media Dock Ultra
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
