100G 2110 IP Networks
2 x 100G QSFP28 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
Blackmagic UpDownCross 100G
SKU: CONVNVIPJ/STG/100G
EAN: 9 338716 010596
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010596
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
2697,00 €
Description

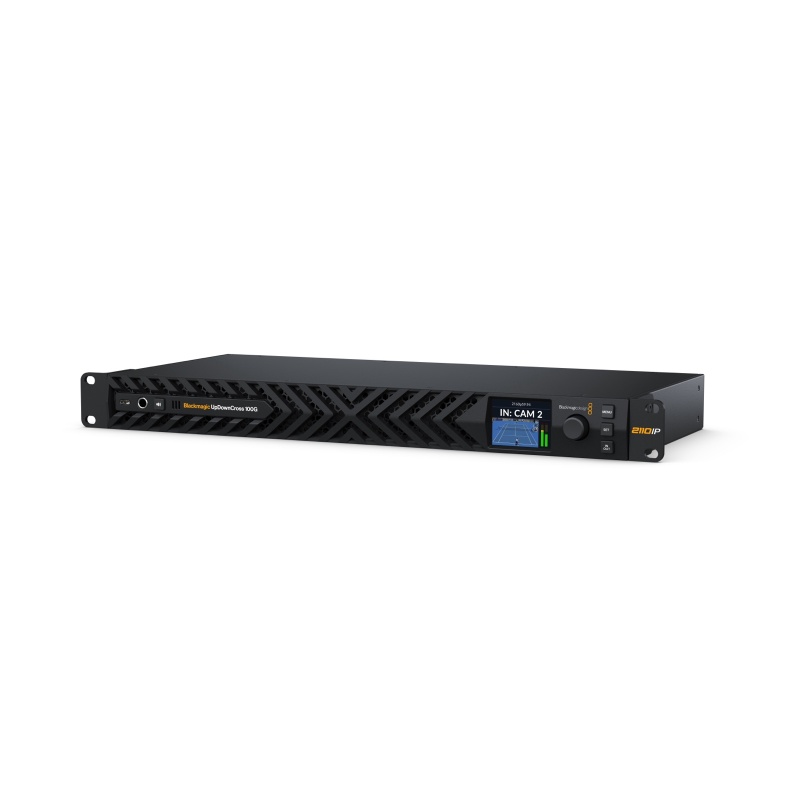

The Blackmagic UpDownCross 100G is a powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet. It converts up to 8 separate channels of SD, HD and Ultra HD video to any other standard simultaneously. The professional 1RU design features front-to-back cooling that's very quiet! It also includes redundant 100G Ethernet for full SMPTE-2022-7 compliance, dual redundant AC power supplies and a separate NMOS control port for connecting to control networks!

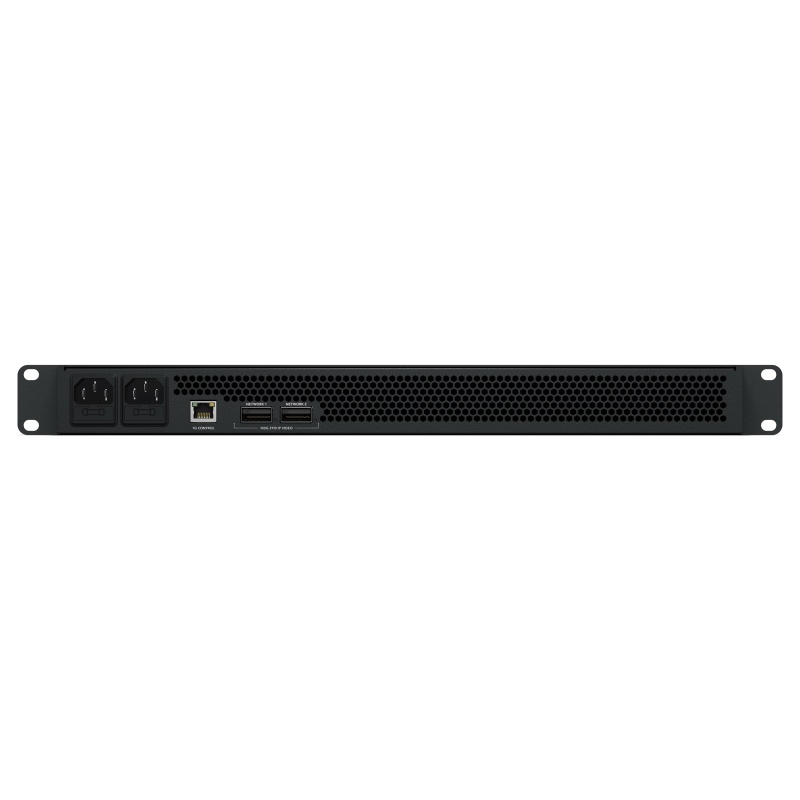

Connections
Senders and Receivers per 100G Camera
8 x Ultra HD or HD.
1G Control Network
1 x 1G RJ45 for NMOS control, configuration and firmware updates.
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
SMPTE ST 2110 IP Audio Outputs
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
Analog Audio Outputs
1 x 6.35 mm headphone jack.
Computer Interface
1 x USB-C for configuration and firmware updates.
Power
2 x IEC C14 power inputs.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,
1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
SMPTE Compliance
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Color Precision
10-bit 4:2:2 YUV
Color Space
Rec. 709, Rec. 2020
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Audio
Headphones
Front panel headphone outputs active monitor.
Built in Speaker
Front panel mono speaker outputs active monitor.
Audio Controls
Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial.
Displays
Display

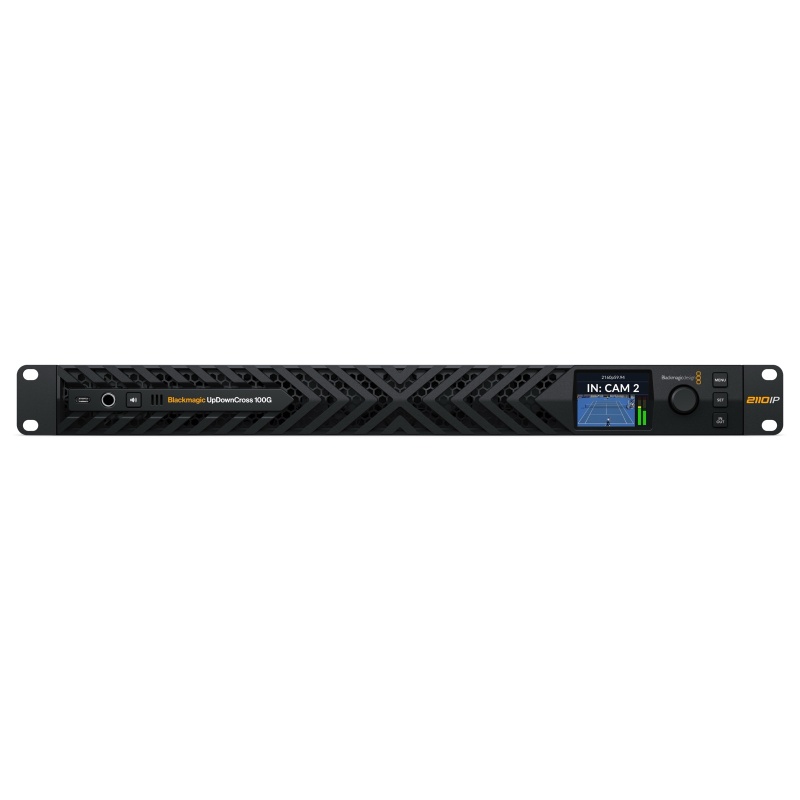

Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.
Control
Built in Control Panel
2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.
External Control
RJ-45 Ethernet and USB-C.
Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs
2 x IEC C14 sockets.
Power Usage
TBC
Physical Installation
1 rack unit.
Environmental Specifications
Operating Temperature
0° C to 40° C (32° ‑ 104°F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic UpDownCross 100G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
