100G 2110 IP Networks
2 x 100G QSFP28 Network connections.
Supports ST 2022-7 redundant delivery of IP streams over the two ‘100G 2110 IP Video’ network connections.

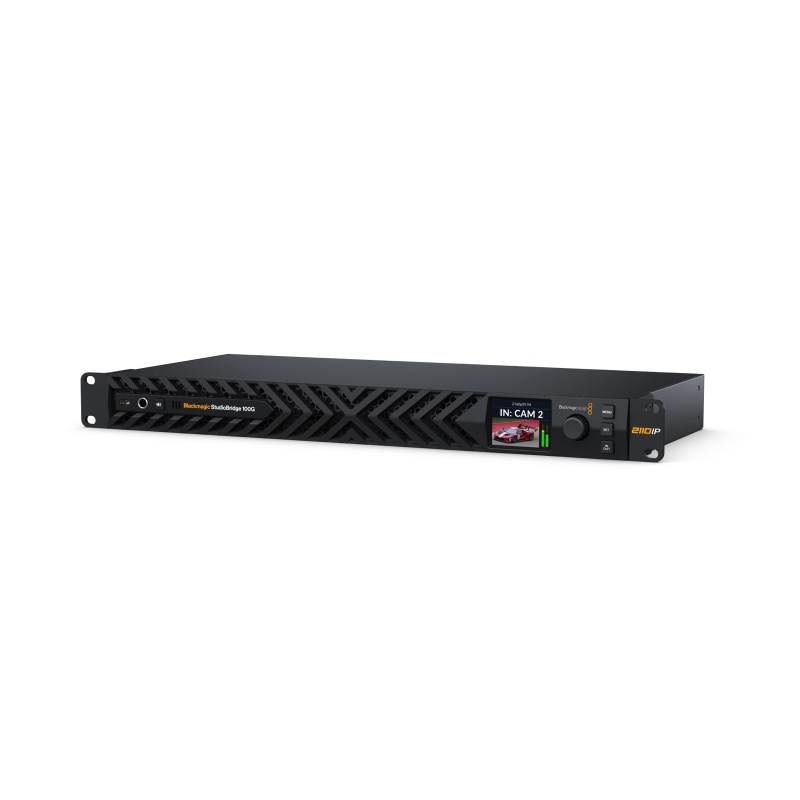

Blackmagic StudioBridge 100G
SKU: CONVNVIPR/SBD100X2
EAN: 9 338716 010565
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010565
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
2771,40 €
Description
The Blackmagic StudioBridge 100G bridges a single 100G Ethernet SMPTE-2110 connection into a redundant dual 100G Ethernet broadcast system. It also has two 100G Ethernet camera connections that can be combined if total bandwidth doesn't exceed 100 Gb/s! This lets you interface two cameras such as the URSA Cine 12K 100G into a redundant broadcast system. It also includes a separate 10G Ethernet channel for accessories, an NMOS control port, and dual redundant power supplies.
Connections
100G 2110 IP Camera
2 x 100G QSFP28 Camera connections.
Senders and Receivers per 100G Pair
1 x 100G URSA Cine or
2 x URSA Cine Immersive / URSA Immersive.
10G 2110 IP Networks
2 x 10G SFP optical fiber connections.
2 x 10G RJ45 connections.
Senders and Receivers per 100G Pair
8 x Ultra HD or HD.
1G Control Network
1 x 1G RJ45 for NMOS control, configuration and software updates.
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.
SMPTE ST 2110 IP Audio Outputs
16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.
Multi Rate Support
Auto detection of HD, Ultra HD and 4K.
Computer Interface
1 x USB-C for configuration and firmware updates.
Power

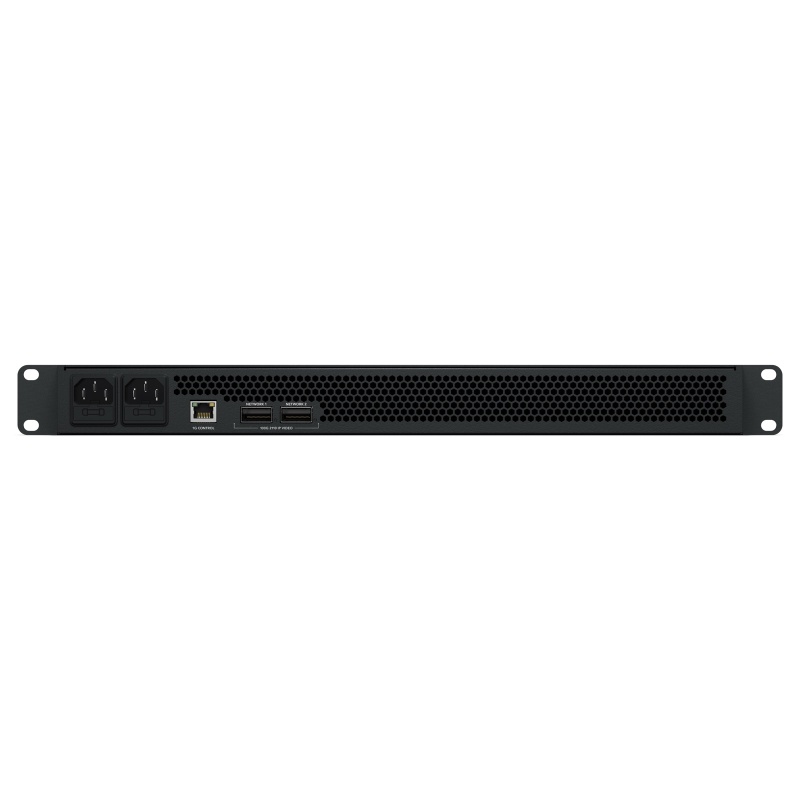

2 x IEC C14 power inputs.
Video Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
8K Video Standards
8160 x 7200 x 2 stereo immersive
SMPTE Compliance
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
Color Precision
10-bit 4:2:2 YUV
Color Space
Rec. 709, Rec. 2020.
SDI Auto Switching
Automatically detects HD and Ultra HD.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Displays
Display
Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.
Control
Built in Control Panel
2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.
External Control
RJ-45 Ethernet and USB-C.
Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs
2 x IEC C14 sockets.
Power Usage
TBC
Physical Installation
1 rack unit.
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic StudioBridge 100G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
