SDI Video Inputs
1 x 3Gb/s SD/HD switchable.

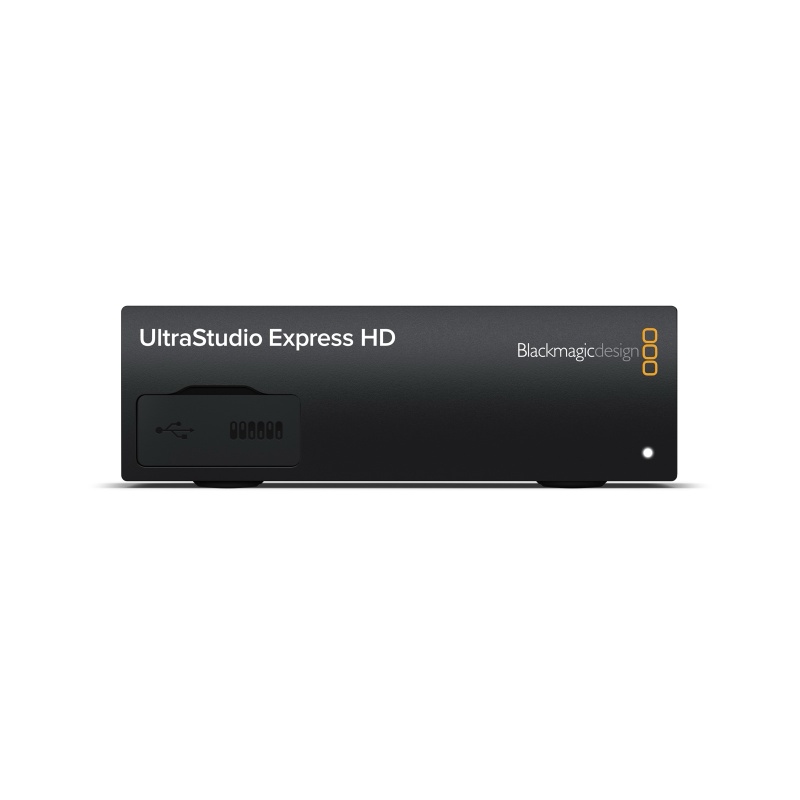

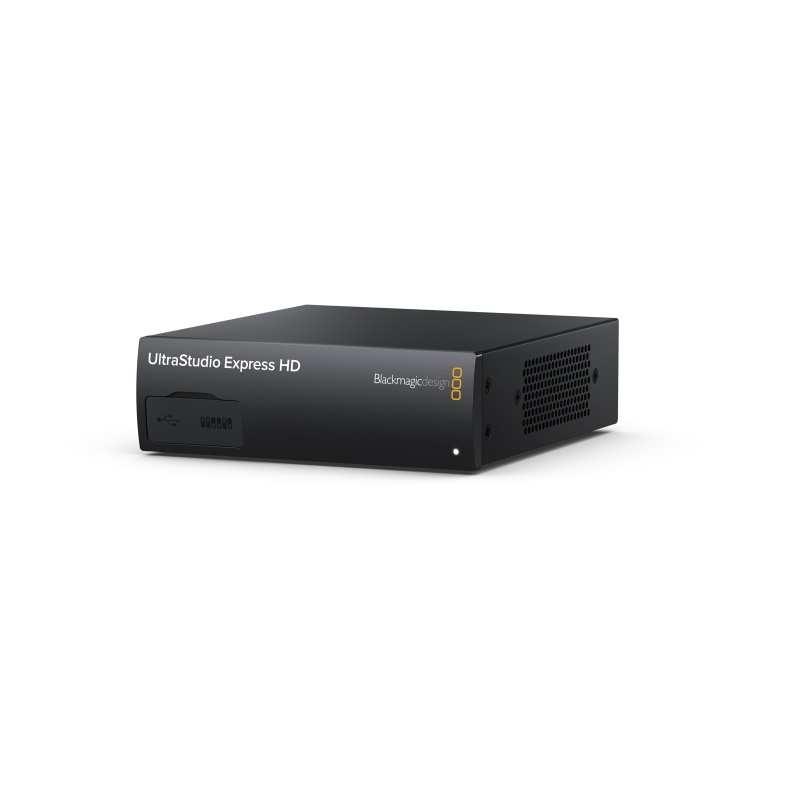

UltraStudio Express HD
SKU: BDLKULSDEXPHD
EAN: 9 338716 010909
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010909
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
613,80 €
Description
Get portable capture and playback with 3G-SDI, HDMI and analog connections for broadcast quality 10-bit video up to 1080p60. It works with Mac, Windows and Linux computers with USB4 or Thunderbolt 4 connections. You can capture and play back all formats up to 1080p60 in full 10-bit YUV or up to 1080p30 and 2K DCI in 12-bit RGB. HDMI output for monitoring to a big screen television or projector, dual SDI outputs for fill and key playback, plus analog audio and video inputs.

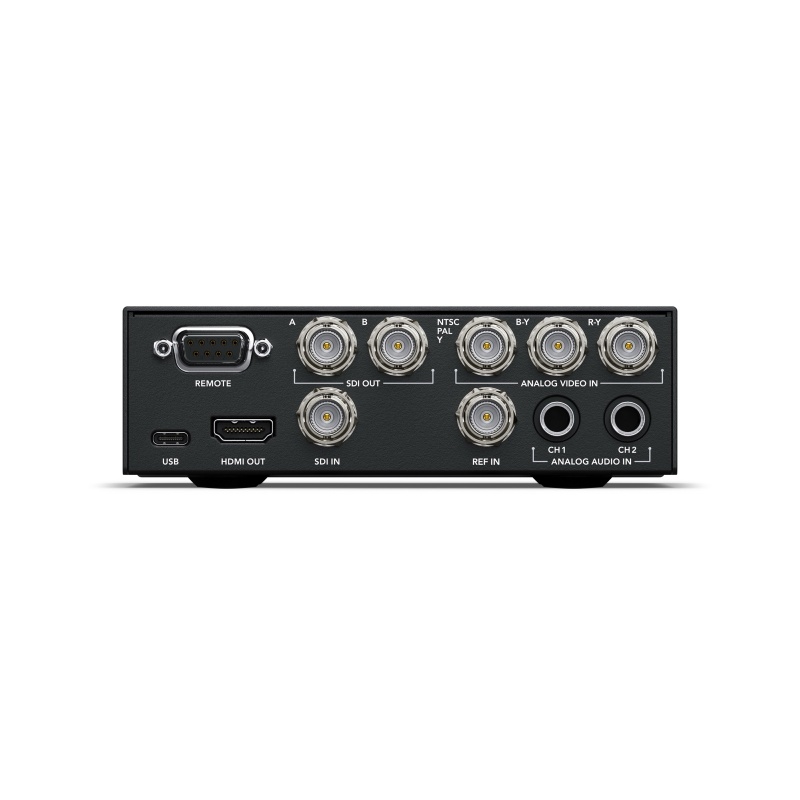

Connections
SDI Video Outputs
2 x 3Gb/s SD/HD switchable, supports fill and key.
SDI Rates
270Mb, 1.5G, 3G
Optical SDI
None
HDMI Video Inputs
None
HDMI Video Outputs
1 x HDMI 1.4b type A connector.
Analog Video Inputs
Y, B-Y, R-Y/NTSC/PAL.
Analog Video Outputs
None
Analog Audio Inputs
2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.
Analog Audio Outputs
None. Embedded audio only.
SDI Audio Inputs
16 Channels embedded in SD and HD.
SDI Audio Outputs
16 Channels embedded in SD and HD.
HDMI Audio Outputs
2 Channels embedded in SD and HD.
Timecode Connection
None. RP-188 only.
Reference Input
Tri-Sync or Black Burst.
Computer Interface
USB Type-C® supporting USB 40Gbps.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2K Video Standards
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
Ultra HD Video Standards
None
4K Video Standards
None
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M and SMPTE 425M level A and level B.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
SDI Audio Sampling
Television rate of 48kHz and 24 bit.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Color Space
REC 601, REC 709.
Multiple Rate Support
SDI video connections are switchable between standard definition and high definition. SDI switches between 270Mb/s, 1.5Gb/s and 3Gb/s.
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
HDMI Audio
Television rate of 48kHz and 24 bit.
HDMI Video
4:2:2 and 4:4:4
HDMI Color Space
Rec. 601, Rec. 709
Multiple Rate Support
HDMI video connection is switchable between SD and HD.
Hardware Frame Buffer
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB).
Color Precision
HDMI
8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
SDI
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
Computer Capture
1 x USB Type‑C® supporting USB 40Gbps on Mac and Windows. Powers from host computer USB‑C port. Includes Blackmagic Desktop Video SDK.
Control
Built in Control Panel

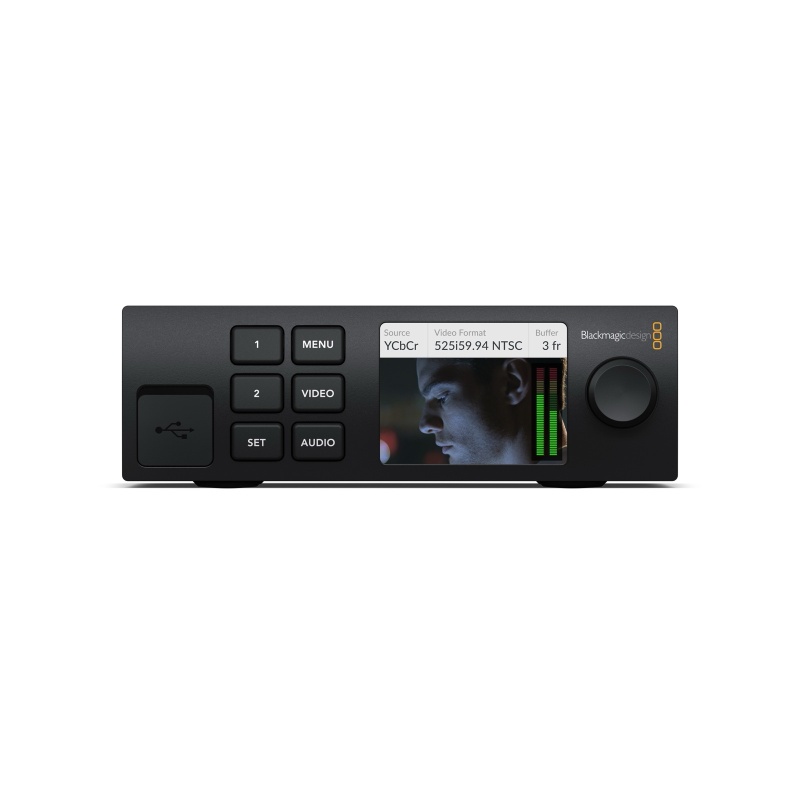

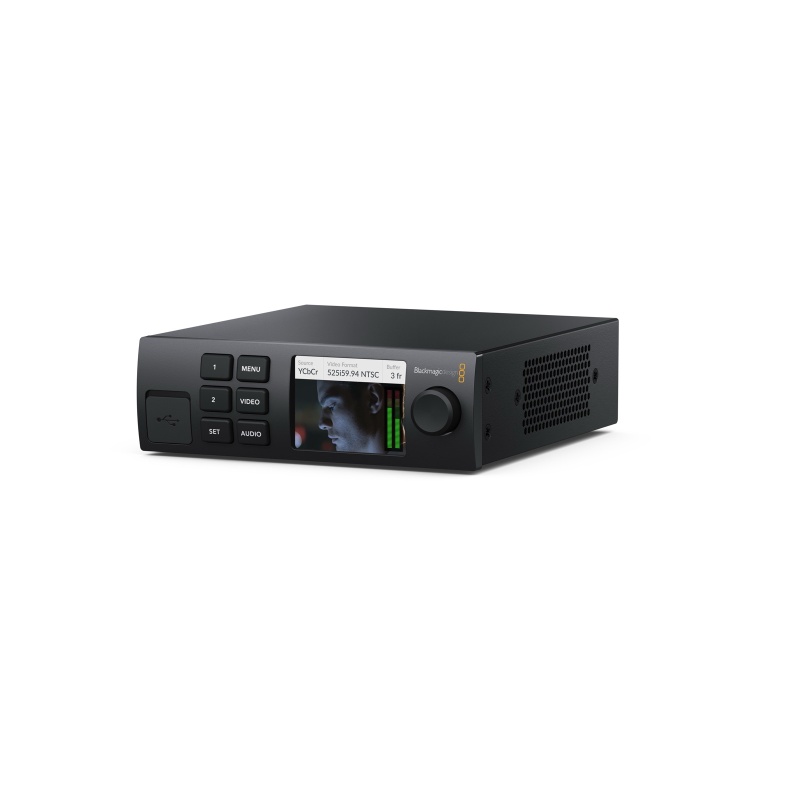

None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status.
Device Control
1 x RS-422 deck control.
Processing
Colorspace Conversion
Hardware based real time.
HD Down Conversion
Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Real Time Effects
Final Cut Pro X internal effects. Adobe Premiere Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve.
Physical Installation
Physical Installation
Desktop or rack mount.
One third rack unit width, 1 rack unit height. Compatible with optional Blackmagic Universal Rack Shelf.
Computer Interface
Host computer requires a USB Type-C® port with 40Gbps signalling rate.
Power Requirements
Powered over USB. Requires computer with a USB Type‑C® 40Gb/s port.
Accessories
Teranex Mini Smart Panel
Blackmagic Universal Rack Shelf
Environmental Specifications
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
UltraStudio Express HD
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
