SDI Video Inputs
1

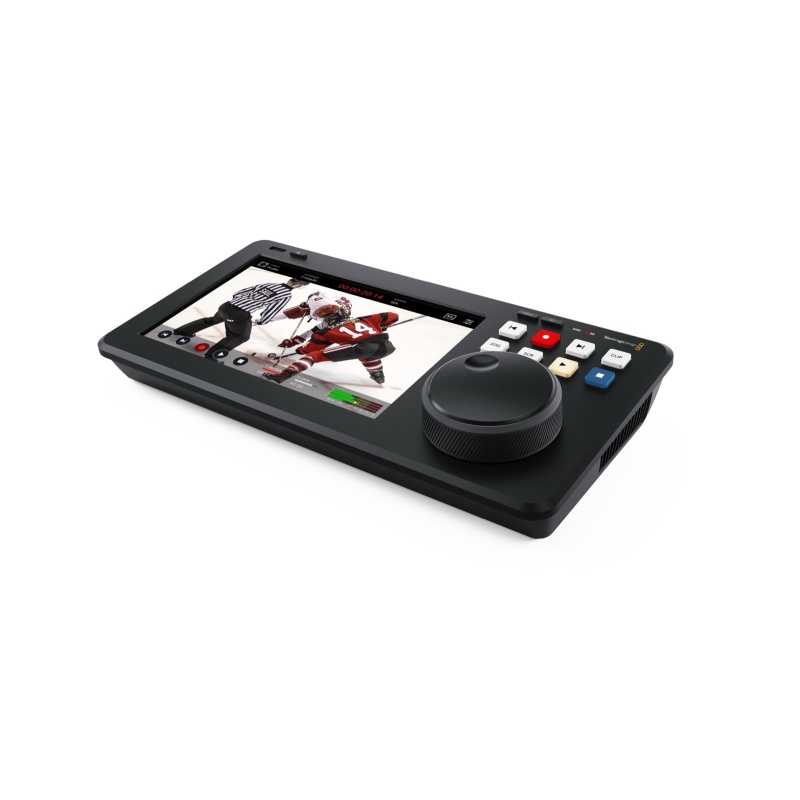

HyperDeck Shuttle 4K Pro
SKU: HYPERD/PTSKD
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
1836,10 €
Description
HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.
Connections
SDI Loop Outputs
1
SDI Video Outputs
2
SDI Monitor Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
HDMI Monitor Outputs
1
Built in Speaker
Mono
Audio Output
1 x 6.35 mm headphone jack
Screen
7 inch LCD.
Reference Input
1 x BNC In,
Tri-Sync or Black Burst.
Reference Output
1 x BNC Out.
SDI Audio Inputs
64 channels embedded audio.
SDI Audio Outputs
64 channels embedded audio.
HDMI Audio Inputs
8 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Remote Control
1 x RS-422 In.
Recorder Configuration
Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
Ethernet
1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
External Recording
1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
Computer Interface
1 x USB-C for software updates.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 424M.
SDI Metadata Support
Television standard 24‑bit, 48 kHz sample rate.
Supported HDMI Formats
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60,
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio Sampling
Television standard 24‑bit, 48 kHz sample rate.
Video Sampling
4:2:2 YUV
Color Precision
REC 601, REC 709, REC 2020.
33 point 3D LUTS can be applied to SDI monitor out.
HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Multi Rate Support
Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Cache Recording
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
Media
1 x SD card slot
1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.
Media Type
UHS-I and UHS-II SD cards.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Video Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.
Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs.
DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps.
DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps.
H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps.
H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Audio Codecs
AAC 2 Channels.
PCM 2, 4, 8, 16, 32 or 64 Channels.
Scopes
Scopes
Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.
Viewing Modes
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Control
Built in Control Panel
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
External Control
11 buttons for transport and device control with search dial.
Teleprompter
Multi Rate Support
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
Supported File Formats
Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Software
Software Included
Blackmagic OS
Blackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Displays
Built in LCD for video, audio and timecode monitoring and menu settings.
Power Requirements
Power Supply
1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
Power Usage
60 W max.
Environmental Specifications
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
HyperDeck Shuttle 4K Pro
12V universal power supply with international socket adapters
Warranty
1 Year Limited Manufacturer’s Warranty.
