SDI Video Inputs
4
Front panel input overrides rear input 4
Blackmagic Videohub Mini 4x2 12G
SKU: VHUBSMTG12G0402
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
742,98 €
Description

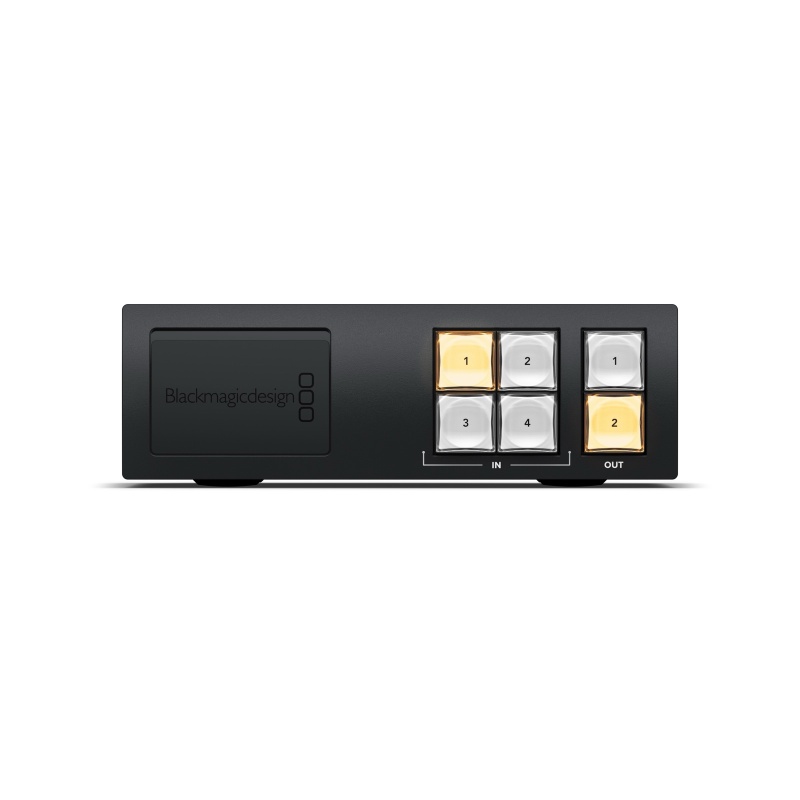

Blackmagic Videohub Mini 4x2 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 4 12G-SDI inputs and 2 12G-SDI outputs in a tiny 1/3 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Connections
SDI Video Outputs
2
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Video Input Re-Sync
On all 4 inputs for clean switch.
SDI Reclocking
On all SDI outputs.
Reference Inputs
None
Reference Outputs
None
Webcam Output
USB‑C
Ethernet
Supports 10/100/1000 BASE‑T.
Computer Interface
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PALHD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Video Sampling
YUV 4:2:2 and RGB 4:4:4
SDI Color Precision
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
SDI Color Space
REC 601, REC 709, REC 2020
SDI Auto Switching
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
6 x buttons
External Control Panel
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control Panel Connection
Ethernet
Software
Software Control
Router control included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
IEC power cable required. 1 x 12V DC input with reverse polarity protection.
Power Usage
17W max.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Videohub Mini 4x2 12G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
