SDI Video Inputs
1
Blackmagic Streaming Encoder HD
SKU: BDLKWEB/C/SEDHD
EAN: 9 338716 010039
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010039
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
551,80 €
Description
Blackmagic Streaming Encoder HD is powerful self-contained streaming processor with H.264 streaming in 720p, 1080i and 1080p HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoring output.

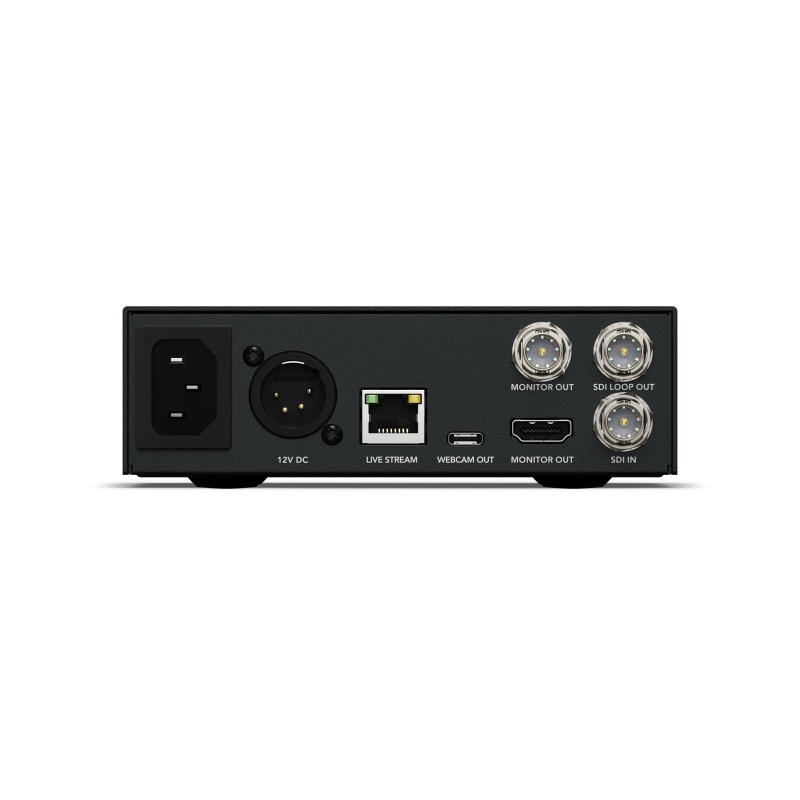

Connections
SDI Loop Outputs
1
SDI Monitor Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G
HDMI Monitor Outputs
1
SDI Audio Inputs
16 channels embedded audio.
SDI Audio Outputs
16 channels embedded audio on Loop Out.
HDMI Audio Outputs
2 channels embedded audio on Monitor Out.
Webcam Output
1 x USB-C up to 1080p60
Ethernet
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
Ultra HD Video Input Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Video Input Color Space
Rec. 709, Rec. 2020
3G SDI
Auto detects SMPTE level A or B on SDI input.
SDI and HDMI Monitor Out Video Standards
1080p50, 1080p59.94, 1080p60
Video Streaming Standards
720p25, 720p30, 720p50, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Streaming
Direct Streaming
Blackmagic Streaming Encoder HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.
Closed Captions
Blackmagic Streaming Encoder HD supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Timecode
Support source timecode over RTMP and SRT streams.
Control

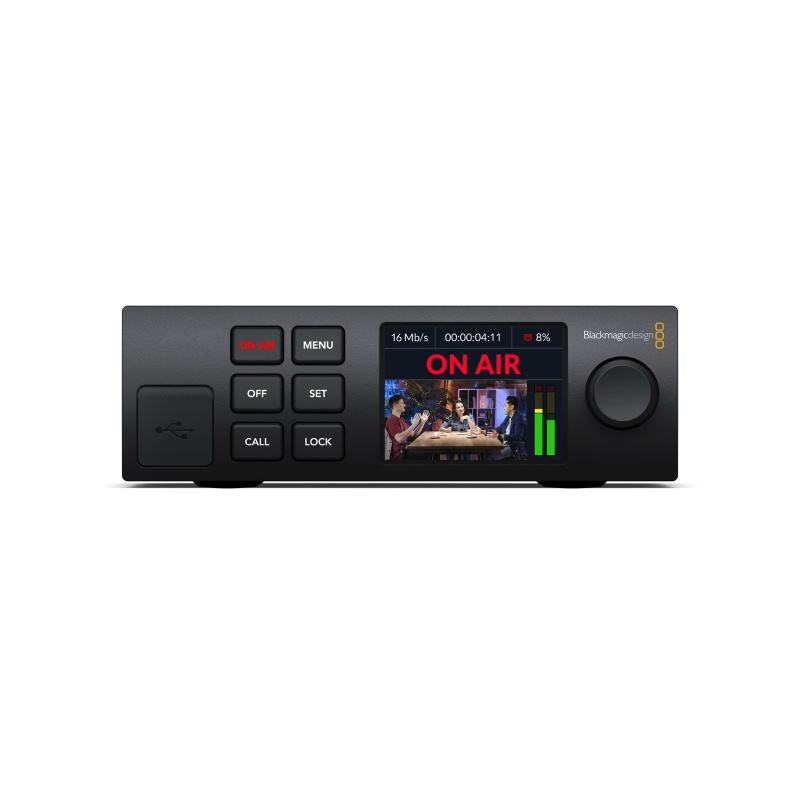

Control Panel
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Device Control
Front panel, USB‑C or Ethernet.
External Control
Supports remote camera control, color corrector, tally and talkback.
REST API over Ethernet for external control via HTTP when used with REST client applications.
Displays
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Software
Compatible Services and Software
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC.
12V DC Input
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
Power Usage
21 W
Physical Installation
Physical Installation
One third rack unit width, 1 rack unit height.
Environmental Specifications
Operating Temperature
0° C to 40° C (32° - 104°F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Streaming Encoder HD
Welcome wallet with QR code for software download
Warranty
3 Year Limited Manufacturer’s Warranty.
