100G 2110 IP Networks
2 x 100G QSFP28 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
Blackmagic SDI Expander 8x12G
SKU: CONVNVIPP/EX10012G8
EAN: 9 338716 010589
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010589
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
3341,80 €
Description

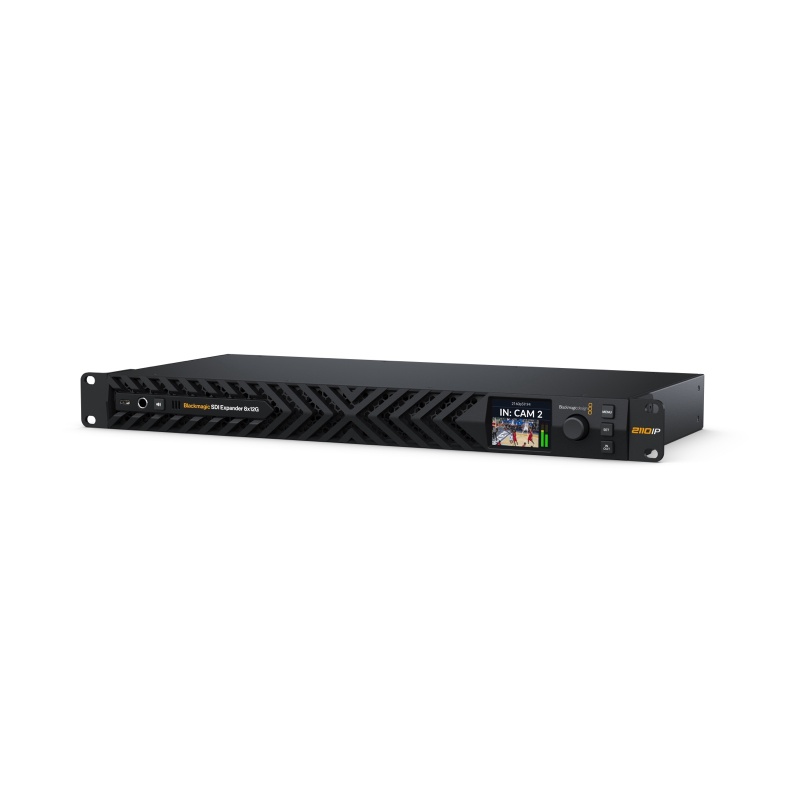

Blackmagic SDI Expander 8x12G converts in 2 directions at the same time! It converts 8 independent channels of 12G-SDI to SMPTE-2110, while simultaneously converting a separate set of 8 channels of SMPTE-2110 back to 12G-SDI. That's 16 channels of conversion in a single rack unit! The SMPTE-2110 connections use two 100G Ethernet ports for full SMPTE-2022-7 redundancy. There is also a separate NMOS control Ethernet port and dual redundant AC power supplies for reliable broadcast operation.

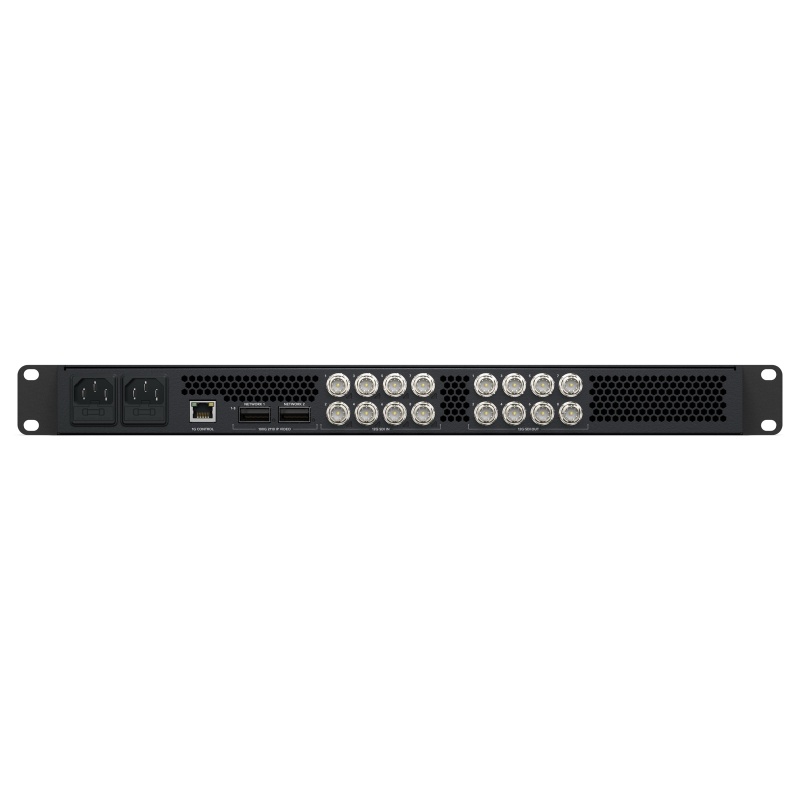

Connections
Senders and Receivers per 100G Pair
8 x Ultra HD or HD.
1G Control Network
1 x 1G RJ45 for NMOS control, configuration and firmware updates.
SDI Video Inputs
8
SDI Video Outputs
8
SDI Rates
1.5G, 3G, 6G, 12G.
SDI Audio Inputs
16 Ch embedded audio on SDI inputs.
SDI Audio Outputs
16 Ch embedded audio on SDI outputs.
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
SMPTE ST 2110 IP Audio Outputs
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
Analog Audio Outputs
1 x 6.35 mm headphone jack.
Power
2 x IEC C14 power inputs.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SMPTE Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2022-7, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
SDI Color Precision
10-bit 4:2:2 YUV
Color Space
Rec. 790, Rec. 2020.
SDI Auto Switching
Automatically detects HD and Ultra HD. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G‑SDI output.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Audio
Audio
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.

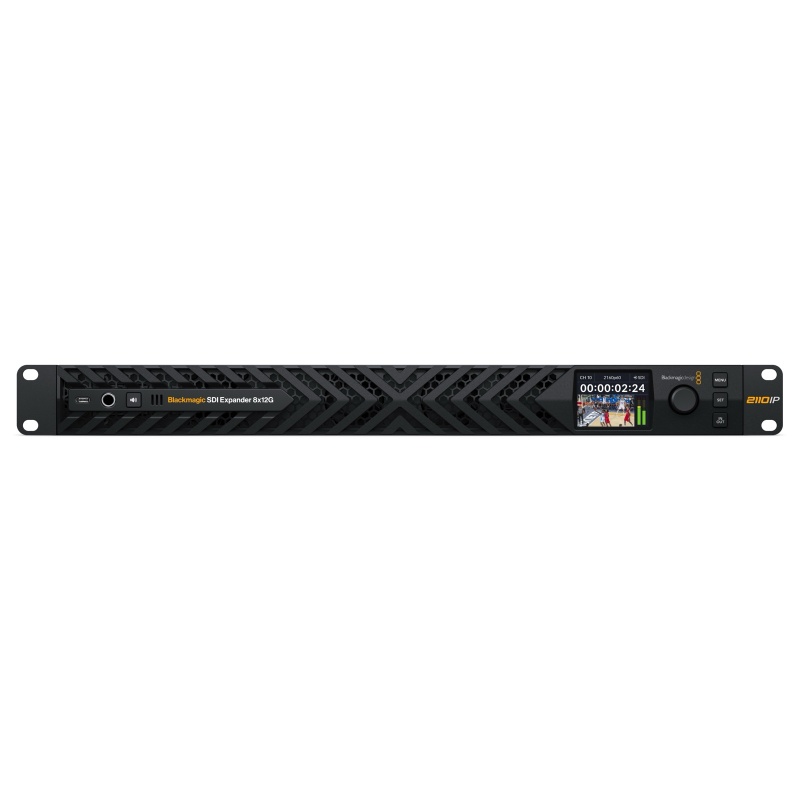

Displays
Display
Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.
Control
Built in Control Panel
2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.
External Control
RJ-45 Ethernet and USB-C.
Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs
2 x IEC C14 sockets.
Power Usage
TBC
Physical Installation
1 rack unit.
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic SDI Expander 8x12G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
