10G 2110 IP Networks
2 x 10G RJ45 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
ATEM Monitoring Rack Panel 40
SKU: SWPANELABRMP40
EAN: 9 338716 010503
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010503
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
1771,96 €
Description

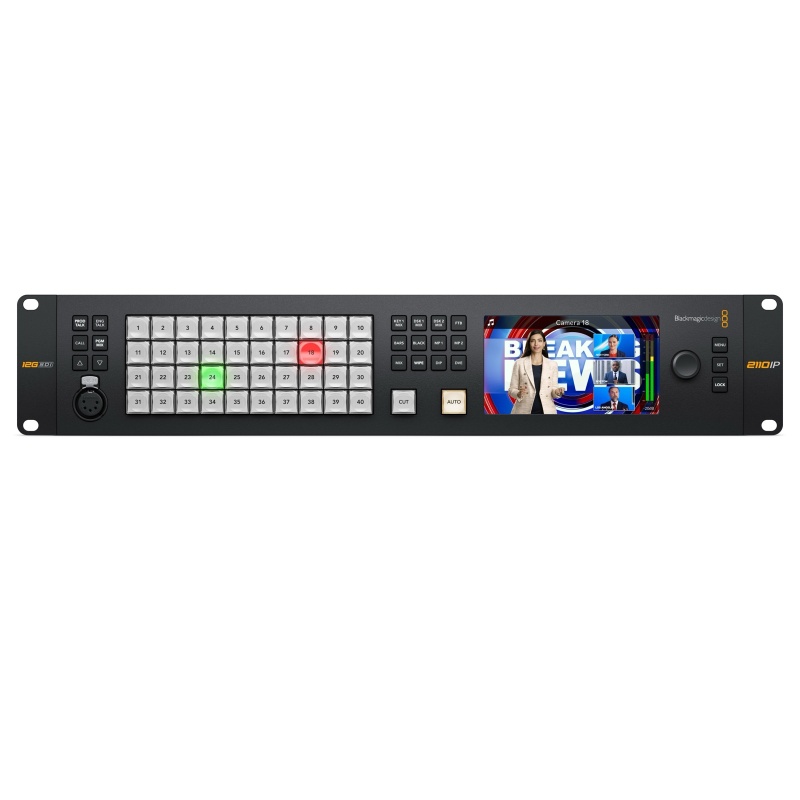

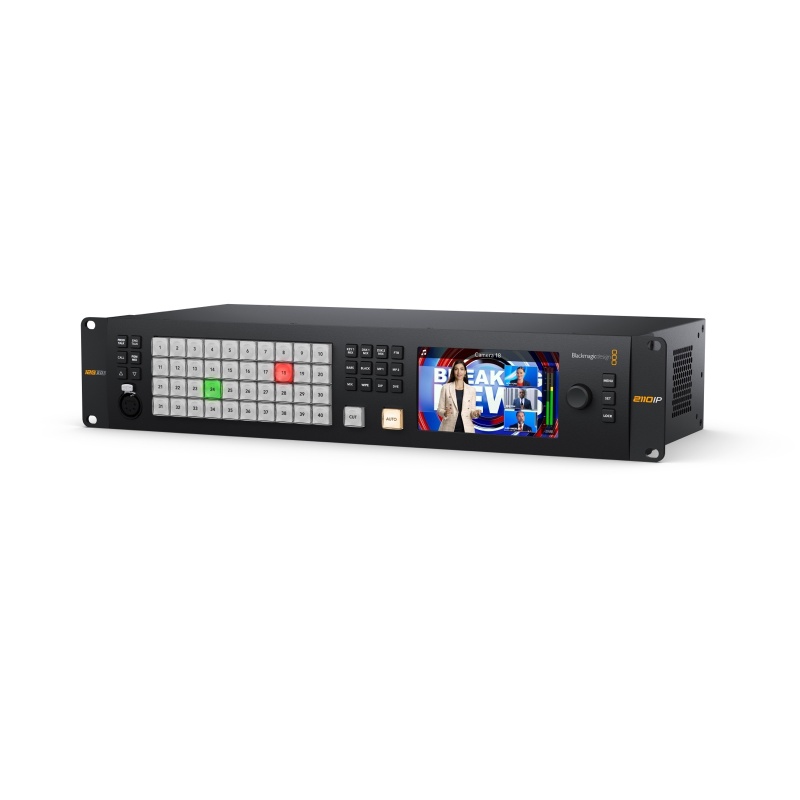

The ATEM Monitoring Rack Panel 40 is a video converter built into a larger 2RU rack-mount ATEM switcher control panel! It features 40 buttons for controlling a local ATEM switcher, plus a front panel talkback connection for communication. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter's large 5-inch built-in LCD screen, giving you convenient local rack monitoring!
Connections

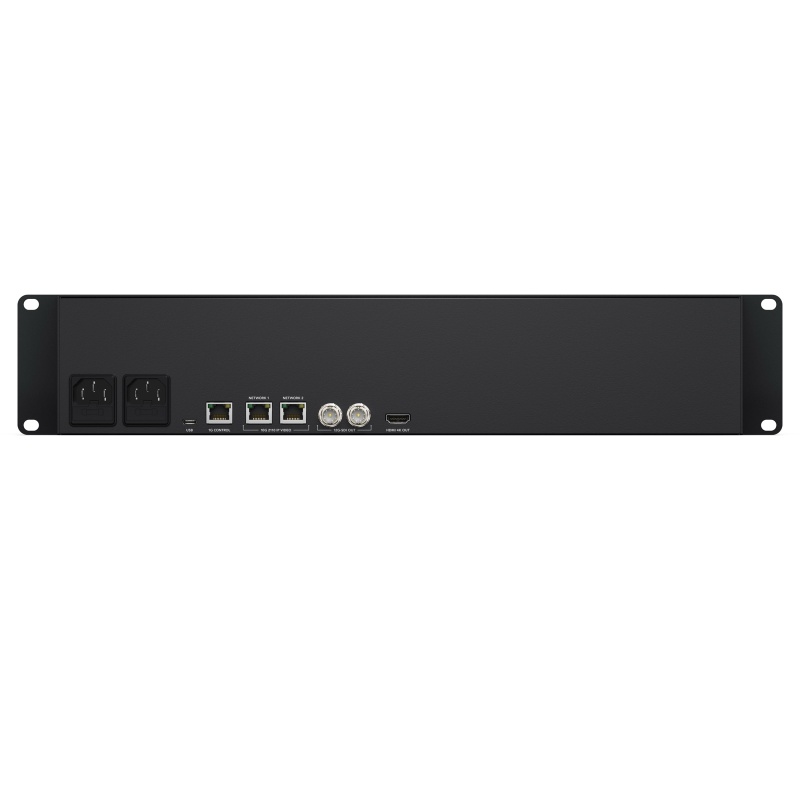

10G Control Network
1 x 1G RJ45 for connection to switcher and NMOS control.
Total Video Inputs
1
Total Video Outputs
3
SDI Video Outputs
2
SDI Rates
1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Inputs
1
SDI Audio Outputs
16 Ch embedded audio on all SDI outputs.
HDMI Audio Outputs
8 Ch embedded audio on HDMI output.
SDI Program Outputs
2
SDI Preview Outputs
2
SDI Multi View Outputs
2
HDMI Multi View Outputs
1
Talkback
1 x 5-pin XLR Talkback.
Computer Interface
1 x USB-C for setup utility and software updates.
Power
2 x IEC C14 power inputs.
Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
SMPTE Compliance
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
Video Sampling
4:2:2
Color Precision
10-bit.
SDI Color Space
Rec. 709, Rec. 2020
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Product Specifics
Talkback Support
Yes
Control
Front panel emergency switching, software or optional hardware panel.
Display
Front panel
Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Software
Control Panel Included
ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
Software Updates
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Input
2 x IEC C14 sockets.
Power Usage
TBC
Physical Installation
Physical Installation
2 rack units.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
ATEM Monitoring Rack Panel 40
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
