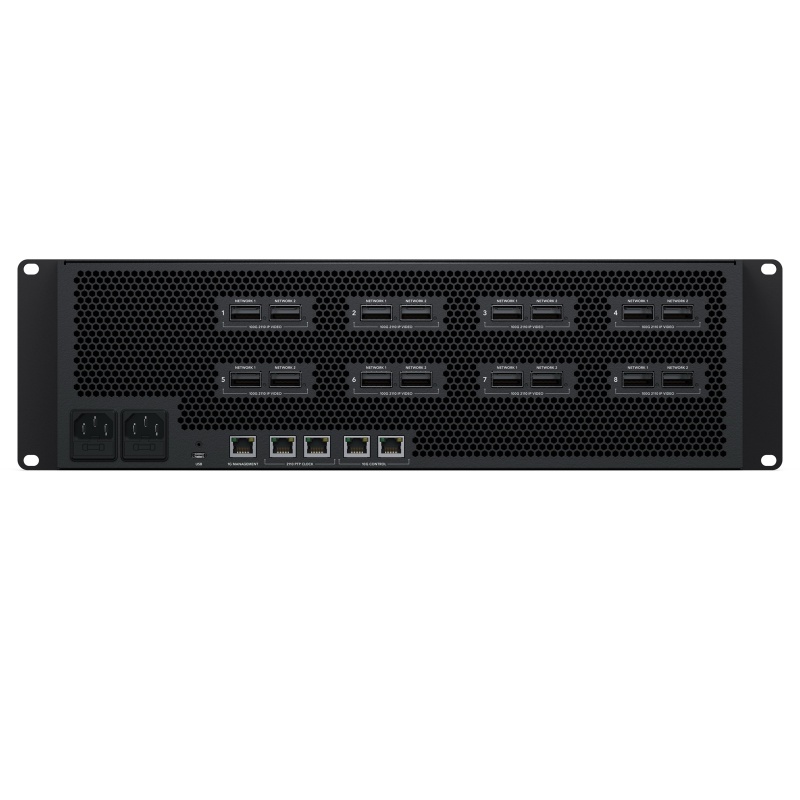

100G 2110 IP Networks
16 x 100G QSFP28 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
ATEM 4 M/E Constellation IP Plus
SKU: SWATEMSCN2/3ME4/IP/P
EAN: 9 338716 010510
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
EAN: 9 338716 010510
Brand:
Unit: piece
Qty: Available on backorder
Delivery time: Available on request
Price:
14402,60 €
Description

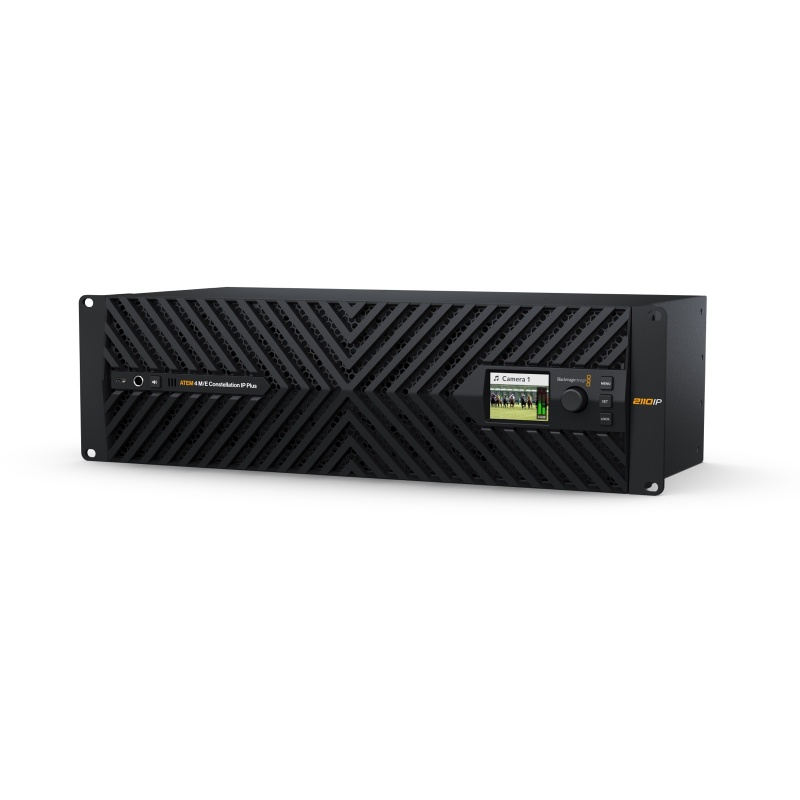

ATEM 4 M/E Constellation IP Plus is a much larger and more powerful live production switcher with lots of video inputs and outputs! It features a design that's fully SMPTE-2110 native with high-speed 100G Ethernet connections. Like the smaller model, all IP video connections are fully redundant and SMPTE-2022-7 compliant. You get an impressive 64 inputs and 52 outputs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource processors for a total of 12 DVEs. Perfect for large live productions!
Connections
Senders and Receivers per 100G Pair
8 x Ultra HD
10G Control Network
2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets.
Reference Network
2 x RJ45 Ethernet for 2110 PTP clock.
1G Management
1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates.
Analog Audio Outputs
1 x 6.35 mm headphone jack.
Total Video Inputs
64
Total Video Outputs
52
Total Aux Outputs
48
Total Audio Outputs
1 x 6.35 mm headphone jack.
1 x Speaker
Frame Rate and Format Converters
On all 64 inputs
Extra Audio Outputs
1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.)
1 x built-in speaker.
SDI Program Outputs
Any of the 48 outputs.
SDI Preview Outputs
Any of the 48 outputs.
Webcam Output
Rear USB-C supports 720p or 1080p at PGM frame.
Control Panel Connection
2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Internal Timecode Generator
Yes
Computer Interface
Rear USB-C supports USB 3.0 for external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates.
Front USB-C supports USB 2.0 for updates and setup only.
Power
2 x IEC C14 power inputs.
Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
SMPTE Compliance
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
Video Sampling
4:2:2
Color Precision
10-bit.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Product Specifics
Upstream Keyers
16
Downstream Keyers
4
Advanced Chroma Keyers
16
SuperSource
2
Talkback Support
Yes
Mix Minus Support
Yes
Linear/Luma Keyers
20
Transition Keyer (Stinger/DVE)
4 Stinger, 4 DVE.
Total Number of Layers
28
Pattern Generators
21
Color Generators
2
DVEs
4
Control
2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Routable Windows
64
Tally
Red for program and green for preview indication.
Windows Source Labels
Yes
Multi View Monitoring
Multi View Monitoring
4 x 16 Multiview pattern options for up to 64 total views.
Multi View Video Standard
Select HD or Ultra HD.
Media Player
Media Players
4
Channels
Fill and key for each media player.
Media Pool Still Image Capacity
64
Media Pool Clip Capacity
4
Media Player Clip Length in 720 HD
3200 frames
Media Player Clip Length in 1080 HD
1600 frames
Media Player Clip Length in Ultra HD
400 frames
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Display
Interface
Minimum monitor resolution of 1366 x 768.
Front panel

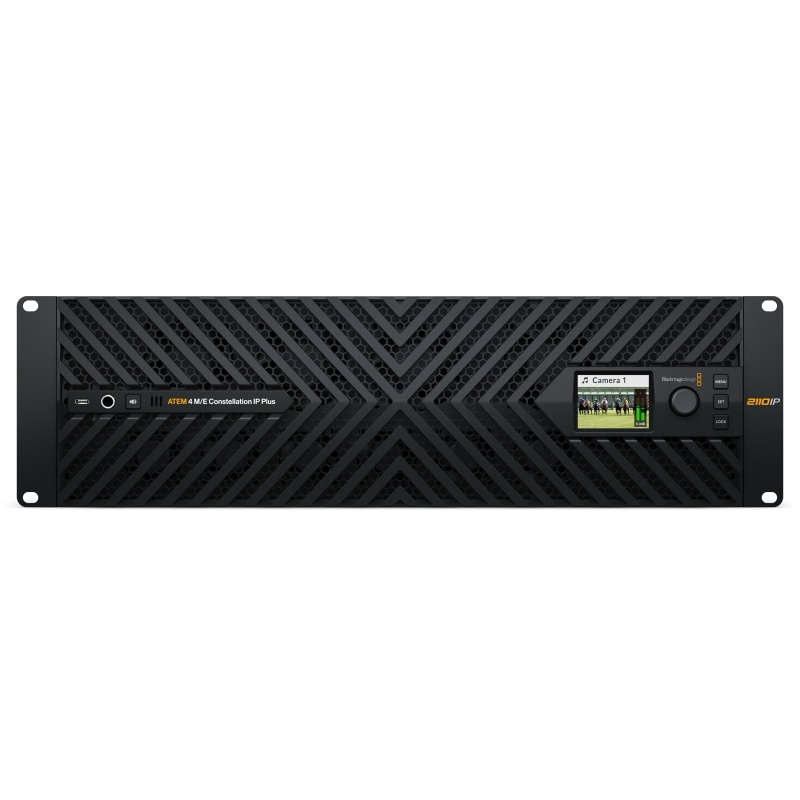

Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Processing
Processing Delay
TBC
Audio Mixer
132 Channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down Conversion
None
Software
Control Panel Included
ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
Software Updates
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs
2 x IEC C14 sockets.
Power Usage
TBC
Physical Installation
Physical Installation
3 rack units.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
ATEM 4 M/E Constellation IP Plus
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
